Minimum order quantity: Negotiable
Supply capacity: Daily production of 1,000 sets.
Delivery deadline: Subject to actual situation
Regular packaging:
1>fence panel: plastic film+wood /metal pallet
2>fence post: every post pack with a plastic bag(the cap is covered well on the post)+ pallet
3>accessory: small plastic bag+carton box
4>according to your requirement

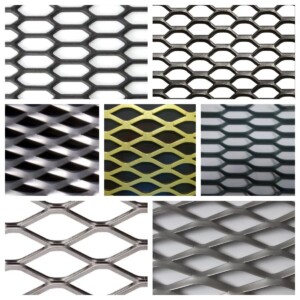

expanded metal mesh is a type of metal screen industry. It is also known as metal plate mesh, diamond mesh, iron plate mesh, metal expansion mesh, heavy steel plate mesh, pedal mesh, aluminum plate mesh, stainless steel plate mesh, granary mesh, antenna mesh, filter element mesh, audio mesh, etc.
Expanded metal refers to: metal sheets processed by special machinery (expanded metal punching and shearing machine) to form a mesh-like sheet material.
Materials: low carbon steel plate, stainless steel plate, aluminum plate, copper plate, nickel plate, magnesium plate, aluminum-magnesium alloy plate and other metal plates.
Surface treatment: PVC dipping (spraying, coating), hot-dip galvanizing, electro-galvanizing, anodizing (aluminum plate), anti-rust paint spraying, etc.
It is widely used in the construction of roads, railways, civil buildings, water conservancy, various machinery, electrical appliances, window protection and aquaculture, etc. Various special specifications can be customized according to customer requirements.
|

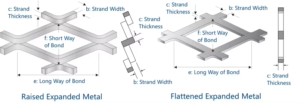

Specifications |
||||||
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
