Gabion box is also called gabion Mesh, stone gabion mesh,gabion basket, hexagonal wire netting gabion and gabion wall etc.

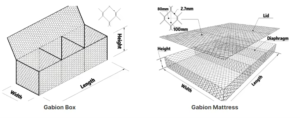

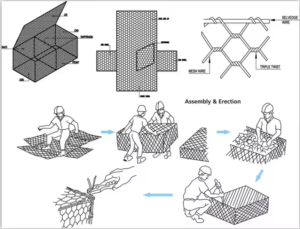

Hexagonal gabion box is a rectangular wire mesh box made from double twisted hexagonal mesh of steel wire, additionally reinforced by selvedge of heavier wire running along the edges and by transverse diaphragms. These mesh boxes are delivered to site flat-packed, whereupon they are assembled, lifted into position, and filled with durable rock. The modular nature of the gabion means that it can be used in a vast array of applications and configurations.

Technique: Woven； Surface Treatment Galvanized or PVC Coated；Size Customized；
Product Name Woven Hexagonal Gabion Box
Certificate SGS, BV, ISO9001, etc；Standard En 10223-3；Finishing: PVC Coated,Hot Dipped Galvanized, Galfan Coated；Applications Flood Control Retaining Wall；
Characteristics Easy to Install, Rust and Corrosion Prevent, etc；

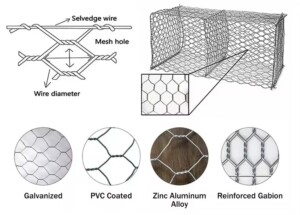

Materials Galvanized Wire, Galfan Wire or PVC Coated Wire；
Mesh Wire Gauge 2.0-4.0 mm
Binding Wire Gauge 2.2mm, 2.5mm
Selvedge Wire Gauge 3.4mm,3.8mm
Gabion Size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m etc
Zinc Coating 40-260G/M2
Gabion Box PVC Color Dark Green, Gray ,Black, etc
Transport Package Metal Pallet with Plastic Film and Strips
