Minimum order quantity: Negotiable
Supply capacity: Daily production of 1,000 sets.
Delivery deadline: Subject to actual situation
Regular packaging:
1>fence panel: plastic film+wood /metal pallet
2>fence post: every post pack with a plastic bag(the cap is covered well on the post)+ pallet
3>accessory: small plastic bag+carton box
4>according to your requirement
Razor barbed wire, also known as blade barbed wire or blade barbed fence, is a new type of protective net.
It is the normal type of Razor wire you see around prisons and high security establishments. As an effective and economical security barrier, with its high security function, Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken. With the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor.
It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with 1200mpa tensile strength or stainless steel wire).

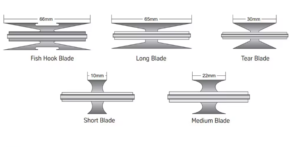

Types of razor wires:BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60
Specification of razor blade wire:

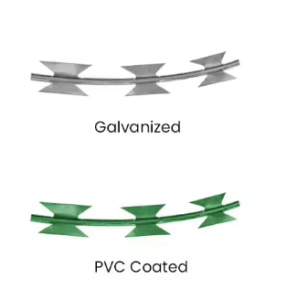

1,Normal hot dipped galvanized razor wire(40-60g)
2,Heavily zinc coated razor wire (70-270g)
3,Stainless steel 304/316 grades razor wire
Clips of concertina wire: 3clips, 5clips or without clips
Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm
| Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel.430/304/316 |
|||||
