Minimum order quantity: Negotiable
Supply capacity: Daily production of 1,000 sets.
Delivery deadline: Subject to actual situation
Regular packaging:
1>fence panel: plastic film+wood /metal pallet
2>fence post: every post pack with a plastic bag(the cap is covered well on the post)+ pallet
3>accessory: small plastic bag+carton box
4>according to your requirement
Welded wire mesh is made of high-quality low-carbon steel wire, and then cold-plated (electroplated), hot-dip-plated, PVC-coated and other surface passivation and plasticization treatments to achieve a flat mesh surface, uniform mesh, firm welding points, good local machining performance, stability, good weather resistance, and good corrosion resistance.
Types of welded mesh: galvanized welded mesh, stainless steel welded mesh, PVC welded mesh, plastic-dipped welded mesh, plastic-coated welded mesh, plastic-sprayed welded mesh, welded mesh guardrail, welded mesh fence, granary welded mesh, decorative welded mesh, breeding welded mesh, welded mesh sheet, steel welded mesh, black wire welded mesh, wire drawing welded mesh, hot-dip galvanized welded mesh, cold-dip galvanized welded mesh, butt welding mesh, seedbed welded mesh, steel wire welded mesh, iron wire welded mesh, mining welded mesh, construction welded mesh, welded Dutch mesh, wall plastering mesh, exterior wall insulation mesh, welded mesh sheet, steel welded mesh, vibration welding screen, process welded mesh, brick belt mesh, welded mesh gabion, greening welded mesh, hot-dip galvanized PVC welded mesh after welding, electro-galvanized welded mesh, electro-galvanized before welding, stainless steel welded mesh, wire drawing welded mesh and other welded mesh products.
|

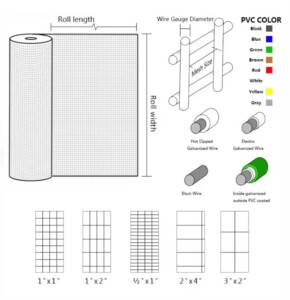

Welded Wire Mesh
|
||
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/4″ x 1/4″
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8″ x 3/8″
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2″ x 1/2″
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8″ x 5/8″
|
16mm x 16mm
|
18,19,20,21
|
|
3/4″ x 3/4″
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1″ x 1/2″
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2″ x 1-1/2″
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1″ x 2″
|
25.4mm x 50.8mm
|
14,15,16
|
|
2″ x 2″
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
|
Technical Note:
1.Standard roll length: 30m,100m;width: 0.5m to 2.5m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
|
PVC Coated Welded Mesh
|
||
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/2″ x 1/2″
|
12.7mm x 12.7mm
|
16,17,18,19,20,21
|
|
3/4″ x 3/4″
|
19mm x 19mm
|
16,17,18,19,20,21
|
|
1″ x 1″
|
25.4mm x 25.4mm
|
15,16,17,18,19,20
|
|
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Common product specifications:
(1). Plastic-coated wire diameter: 3.5mm-8mm;
(2). Mesh size: 60mm x 120mm, double-sided wire all around;
(3). Maximum size: 2300mm x 3000mm;
(4). Column: 48mm x 2mm steel pipe with plastic-coated treatment;
(5). Accessories: rain cap, connection card, anti-theft bolt;
(6). Connection method: snap-on.
